Preference-CalibratedHuman-in-the-Loop Reinforcement Learning
for Robotic Manipulation

CoRL2026Conference on Robot Learning

Zeyi Liu^1,2Guangyao Liu^3,2Yinuo Qu²Yuquan Xue²Bofang Jia²
Chunhua Yang¹Weihua Gui¹Keke Huang^1,†Ziwei Wang^2,†

¹Central South University²Nanyang Technological University³Zhejiang University

† Corresponding authors

Paper Code VideoComing soon

80.5%

Average success rate

from 53.3% with HIL-SERL

33.7%

Human intervention rate

down from 49.8% with HIL-SERL

1.3×

Faster training

67.5 vs. 86.9 minutes on average

Abstract

Human-in-the-loop reinforcement learning (HIL-RL) improves sample efficiency in real-robot manipulation through online human intervention. However, successful trajectories may include suboptimal actions that deviate from the desired task-execution path and force human intervention. Existing HIL-RL methods typically apply the consistent credit assignment principle to all transitions, uniformly propagating discounted terminal rewards through suboptimal segments, ignoring the actual contribution of each transition to task success. This overestimates Q-values for critic learning and indirectly misguides actor updates toward suboptimal behavior patterns.

To this end, we propose PACT, a Preference-calibrated Actor-Critic Training framework that leverages the implicit preference signals induced by intervention to perform credit reassignment on identified suboptimal segments while directly guiding policy training for unbiased critic-actor learning. Specifically, we first design a progress model that learns from human demonstration and identifies suboptimal segments for credit correction. Then, from the human action and resampled policy action at the intervention state, we build preference pairs to define a counterfactual advantage that penalizes Bellman targets of the identified suboptimal segment, enabling directional credit calibration. Moreover, we directly align the policy with human corrective actions in the bounded mean space, providing an additional signal beyond critic-guided updates.

Across six real-robot manipulation tasks, PACT increases average success from 53.3% to 80.5%, reduces the human intervention rate from 49.8% to 33.7%, and achieves 1.3× faster training than HIL-SERL.

A successful trajectory can still contain mistakes.

When a human rescues a rollout, the final reward can give undeserved credit to the robot actions that made the rescue necessary.

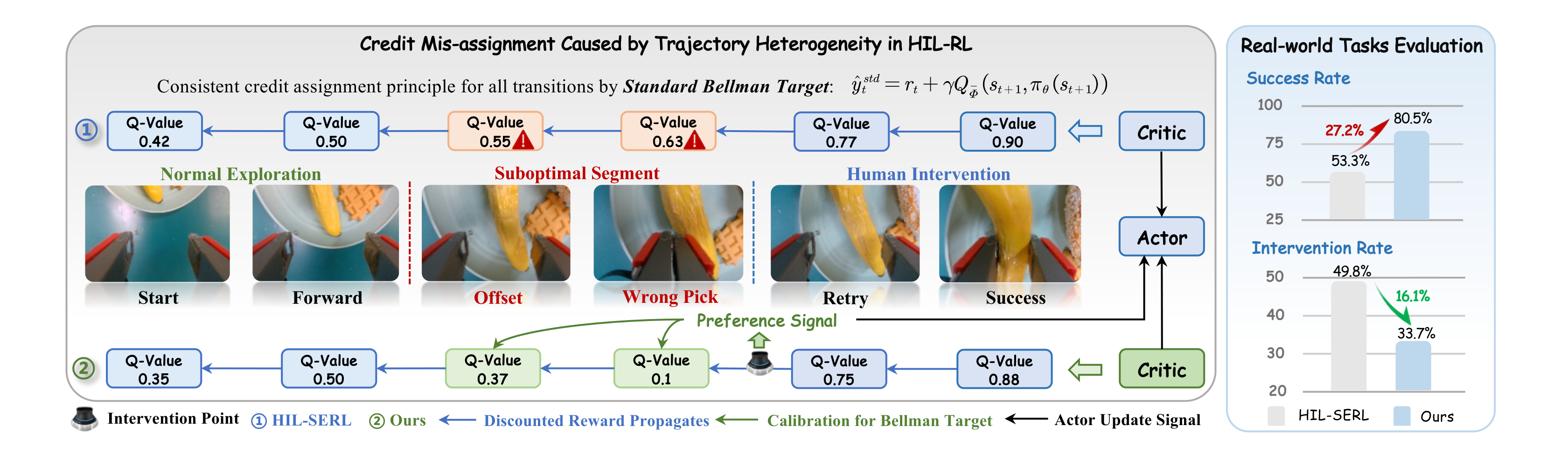

Normal exploration, suboptimal actions, and human recovery, alongside six-task success and intervention-rate improvements — **Human interventions provide more than recovery.** They reveal a preference for corrective actions over the policy actions at the same state. PACT uses this signal to calibrate both the critic and the actor.

Preference-calibrated actor-critic training

Locate the mistakes, reassign credit, and learn from the correction.

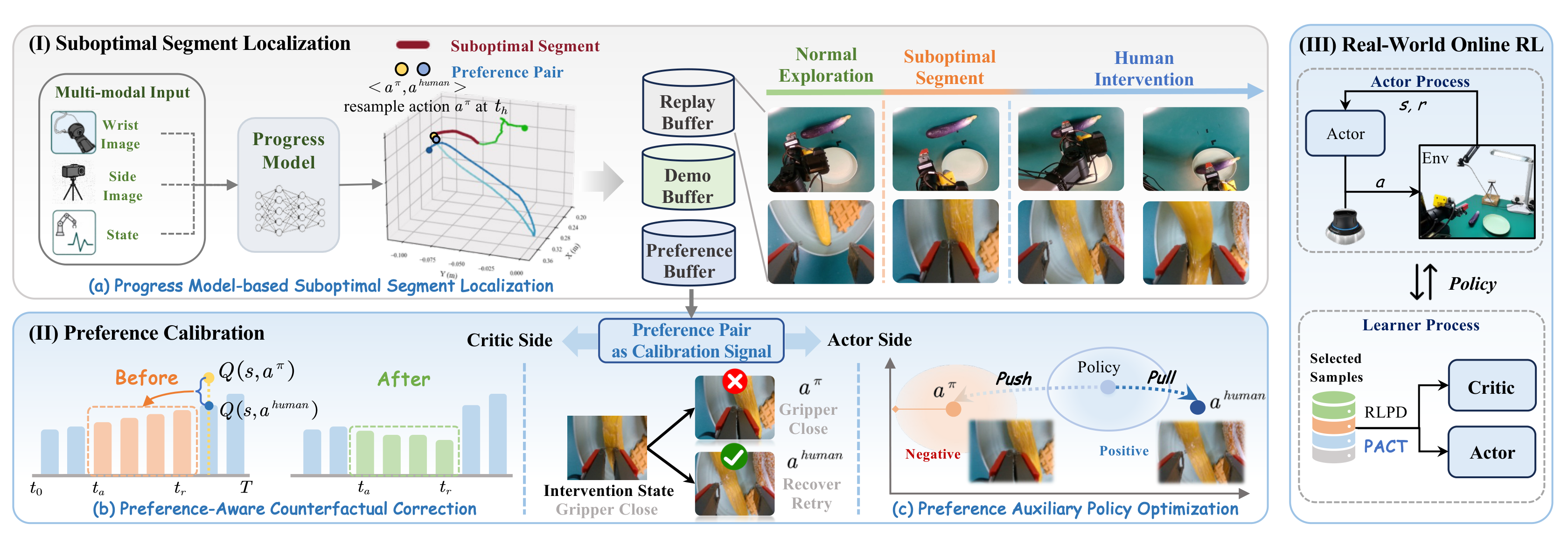

PACT method overview showing progress-based segment localization, preference-aware critic correction, auxiliary actor optimization, and online robot learning — PACT integrates preference calibration into an online HIL-RL training pipeline. Preference pairs come directly from human interventions, without additional preference annotation.

1. Localize

Find suboptimal segments

A lightweight progress model learns from demonstrations. Regressions in estimated task progress locate problematic segments before human intervention.

2. Calibrate

Correct the critic’s credit

Human and resampled policy actions form preference pairs. A counterfactual advantage penalizes Bellman targets within the identified segments.

3. Align

Guide the actor directly

An auxiliary objective in bounded mean-action space draws the policy toward human corrections and away from suboptimal policy actions.

Higher success across six real-world tasks.

Evaluated on a Galaxea A1X 6-DoF arm with 20 demonstrations per task, against HIL-SERL and RLIF.

Scroll horizontally to view Folding, Assembly, and the averages →

Table 1 of the camera-ready paper: success rate, intervention rate, training time, and actor steps across six real-world tasks.
Metric	Method	Press	Insertion	Pick	Pick & Place	Folding	Assembly	Average
Success rate (%) ↑	RLIF	75	60	50	25	10	0	36.7
	HIL-SERL	85	73	67	55	30	10	53.3
	PACT (ours)	95	90	95	70	70	63	80.5
Intervention rate (%) ↓	RLIF	37.4	36.7	38.9	63.8	52.4	59.6	48.1
	HIL-SERL	43.6	45.3	35.8	54.9	63.1	56.0	49.8
	PACT (ours)	19.1	32.5	26.1	36.6	40.9	47.2	33.7
Training time (min) ↓	RLIF	37.7	51.4	74.8	108.4	106.2	122.1	83.4
	HIL-SERL	23.2	51.8	75.0	110.8	118.2	142.6	86.9
	PACT (ours)	21.4	30.3	46.6	94.5	90.1	122.1	67.5
Actor steps (K) ↓	RLIF	13.1	18.6	23.9	35.8	33.5	40.4	27.6
	HIL-SERL	7.7	17.6	22.1	38.0	38.3	44.1	28.0
	PACT (ours)	7.3	11.7	15.7	31.3	27.9	39.9	22.3

Table 1 · Compared with HIL-SERL, average success rises by 27.2 percentage points, intervention falls by 16.1 points, and training time falls from 86.9 to 67.5 minutes.

Intervention-rate and success-rate curves for PACT and HIL-SERL across six tasks, including Folding — **Less intervention as learning progresses.** PACT reduces human intervention more rapidly while achieving faster growth in success rate across the six tasks.

Locating where the robot goes off track

Progress-based localization identifies behavior such as hesitation, wrong grasps, and directional deviations before a human steps in.

Suboptimal segment detection

A banana-picking trajectory is reconstructed alongside two camera views. Burgundy highlights the detected suboptimal segment.

Credit calibration during intervention

Value estimates and robot observations evolve together through a suboptimal segment and a human intervention. Red: PACT; blue: HIL-SERL; black: Monte Carlo return.

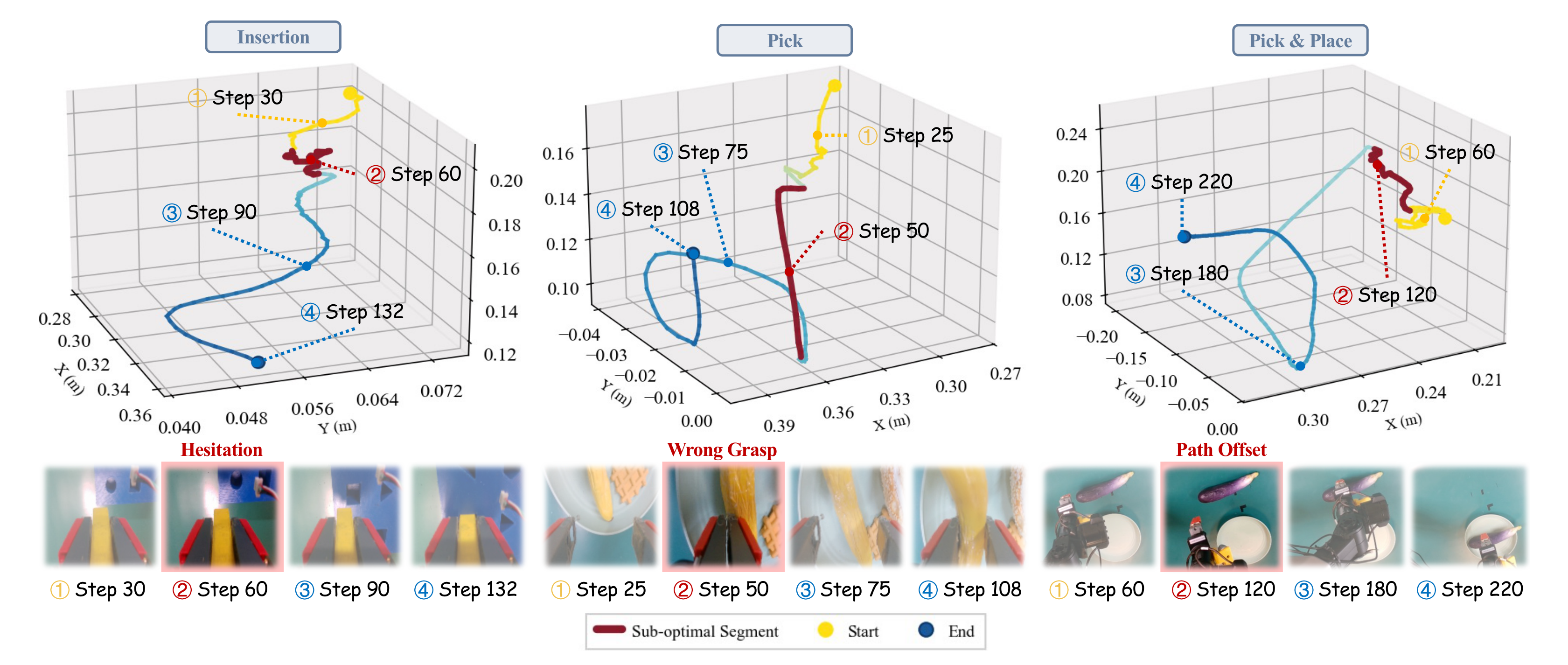

Three robot trajectories and associated image sequences showing hesitation during insertion, a wrong grasp during picking, and a path offset during pick and place — The red trajectory segments correspond to identified suboptimal behavior. This provides targeted segments for credit correction inside otherwise successful rollouts.

Suppressing Q-value overestimation during training

HIL-SERL target Q-values rise during training while PACT reaches a stable plateau; in the trajectory correction segment, HIL-SERL overestimates the Monte Carlo return and PACT lowers its estimates. — PACT stabilizes target Q-values during training and suppresses overestimation in the correction segment, whereas HIL-SERL exhibits pronounced value inflation.

BibTeX

@misc{liu2026pact,
  title={Preference-Calibrated Human-in-the-Loop Reinforcement Learning for Robotic Manipulation},
  author={Zeyi Liu and Guangyao Liu and Yinuo Qu and Yuquan Xue and Bofang Jia and Chunhua Yang and Weihua Gui and Keke Huang and Ziwei Wang},
  year={2026},
  eprint={2606.03949},
  archivePrefix={arXiv},
  primaryClass={cs.RO},
  url={https://arxiv.org/abs/2606.03949}
}
